TOSA-LC 1.25Gbps 850nm Transmitter Optical Subassembly

TOSA-LC 1.25Gbps 850nm Transmitter Optical Subassembly

Features：

● Light Wavelength: 850nm

● Bit Rate: 1.25Gbps

● Low Threshold Current

● LC Receptacle

Applications：

● Digital Optical Communication

Wavelength :
850nm
Rate :
1.25G
Power :
0.5

Inquiry now Download

Product Details

TOSA-LC 1.25Gbps 850nm

Features：

● Light Wavelength: 850nm

● Bit Rate: 1.25Gbps

● Low Threshold Current

● LC Receptacle

Applications：

● Digital Optical Communication

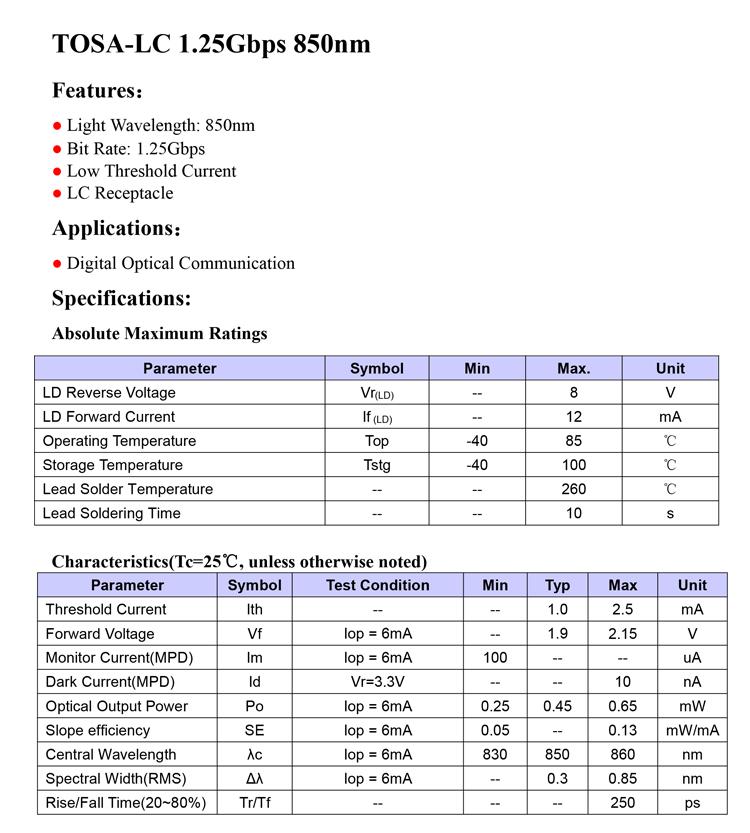

Specifications:

Absolute Maximum Ratings

Parameter	Symbol	Min	Max.	Unit
LD Reverse Voltage	Vr(LD)	--	8	V
LD Forward Current	If (LD)	--	12	mA
Operating Temperature	Top	-40	85	℃
Storage Temperature	Tstg	-40	100	℃
Lead Solder Temperature	--	--	260	℃
Lead Soldering Time	--	--	10	s

Characteristics(Tc=25℃, unless otherwise noted)

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Threshold Current	Ith	--	--	1.0	2.5	mA
Forward Voltage	Vf	Iop = 6mA	--	1.9	2.15	V
Monitor Current(MPD)	Im	Iop = 6mA	100	--	--	uA
Dark Current(MPD)	Id	Vr=3.3V	--	--	10	nA
Optical Output Power	Po	Iop = 6mA	0.25	0.45	0.65	mW
Slope efficiency	SE	Iop = 6mA	0.05	--	0.13	mW/mA
Central Wavelength	λc	Iop = 6mA	830	850	860	nm
Spectral Width(RMS)	Δλ	Iop = 6mA	--	0.3	0.85	nm
Rise/Fall Time(20~80%)	Tr/Tf	--	--	--	250	ps
